NovoPorta Premio S-D-1 with bullet and burglar resistance

Security even in tricky situations

Numerous sensitive areas require protection against attacks of all kinds. The threat of handguns is becoming ever more real, not just in military areas but also and particularly in the public and civilian sectors.

S-D-1 FB 4 is the special bulletproof version of the NovoPorta Premio that has been successfully tested to EN 1522 and constitutes the perfect solution. During testing, the doors were examined for supposed weak points. As no splinters penetrated the interior room, Premio has been awarded the suffix “NS” denoting maximum security.

Your advantages at a glance!

Bullet and burglar resistant
Tested to EN 1522 ballistic class FB 4
which involved firing .44 Magnum and .357 Magnum handguns – the heaviest “large calibres” – at the door, which withstood the attack
Suitable, e.g. for security areas in airports, major train stations or venues, but also exposed areas in police and law enforcement buildings

Overview of ballistic classes

Ballistic classes as per EN 1522 (as of February 1999)
Class	Type of weapon	Calibre	Bullet
Class	Type of weapon	Calibre	type	Weight (g)	Manufacturer / Type	Speed m/s *	Energy (J) *
FB 1	Rifle	.22 lr	L/RN	2.60 ± 0.1	Winchester	360 ± 10	168
FB 2	Handgun	9 mm Luger (9 mm Para)	FJ(1)/RN/SC	8.00 ± 0.1	DAG DM 41	400 ± 10	518
FB 3	Handgun	.357 Mag.	FJ(1)/CB/SC	10.20 ± 0.1	Geco	430 ± 10	943
FB 4	Handgun	.357 Mag.	FJ(1)/CB/SC	10.20 ± 0.1	Geco	430 ± 10	943
FB 4	Handgun	.44 Rem. Mag.	FJ(2)/FN/SC	15.60 ± 0.1	Speer	440 ± 10	1510
FB 5	Rifle	.223 (5.56 x 45)	FJ(2)/PB/SCP1	4.0 ± 0.1	MEN SS109	950 ± 10	3289
FB 6	Rifle	.223 (5.56 x 45)	FJ(2)/PB/SCP1	4.0 ± 0.1	MEN SS109	950 ± 10	1805
FB 6	Rifle	.308 (7.62 x 51)	FJ(1)/PB/SC	9.55 ± 0.1	MEN DM 111	830 ± 10	3289
FB 7	Rifle	.308 (7.62 x 51)	FJ(2)/PB/HC1	9.8 ± 0.1	MEN/CBC FNB. P 80	820 ± 10	3261

L = Lead CB = Coned bullet FJ(1) = Full steel jacket FJ(2) = Full copper jacket FN = Flat nose bullet		HC1 = Steel soft core, weight (3.7 ± 0.1) g, harder than 63 HRC PB = Pointed bullet RN = Round nose bullet SC = Soft core (lead) SCP1 = Soft core (lead) with steel penetrator (type SS 109)			* on impact

NovoPorta Premio S-D-1: the details

Growing risk of attacks with great violence

Affected areas include, e.g. security areas in airports, major train stations or venues, but also exposed areas in police and law enforcement buildings

Easily ignored but very much in need of protection in this age of digitalization: IT server rooms. They are not just the “control centre” of a company; they are often the hub of international business relations. Downtimes cause immense economic damage. The same holds true for banks or research facilities which also need to protect assets of considerable value.
The use of large calibre hand guns is usually assumed in these threatening situations. According to EN 1522, this equates to ballistic class FB 4.

EN 1522 specifies the classification of bullet resistant doors and windows, as well as the calibres and ammunition to be used in testing. NovoPorta Premio was classified FB 4 after successful testing. Tests involved firing .44 Magnum and .357 Magnum handguns – the heaviest “large calibres” – at the door, which withstood the attack.

Holds firm and always looks really good:

The new NovoPorta Premio.

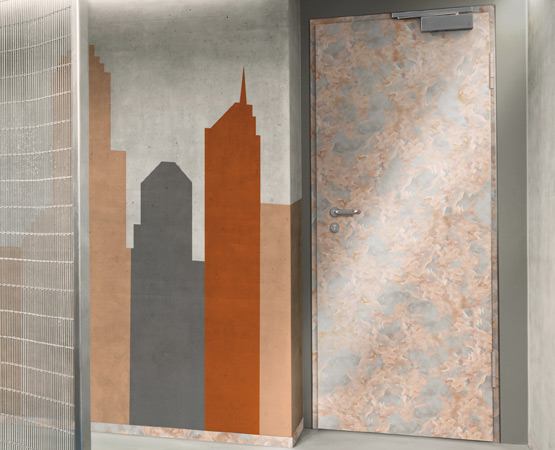

NovoPorta Premio is our new generation of steel doors for Europe. It already complies, not just with strict German standards governing fire resistance and security, but also with the future European product standard EN 16034.

With its huge choice of design, engineering and assembly variants, NovoPorta Premio is just the door for you.

S-D-1 FB 4 is the special bulletproof version of the NovoPorta Premio that has been successfully tested to EN 1522. During testing, the doors were examined for supposed weak points. As no splinters penetrated the interior room, Premio has been awarded the suffix “NS” denoting maximum security.

With its standard special lock and ES 2 security hardware, the NovoPorta Premio S-D-1 FB 4 is also classified as RC 3 burglar resistant as per EN 1627. It can be supplied with one leaf up to a size of 1375 x 2500 mm and, on request, with bullet resistant glazing classified as BR4 as per EN 1063.

The yearning for greater personal security in private buildings is also increasing sharply.

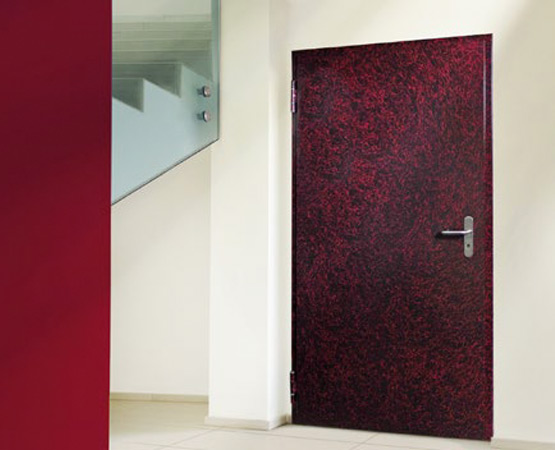

NovoPorta Premio doors all look the same. There is no telling at first glance whether a door is bullet resistant, fireproof or burglar resistant – which offers clear advantages in construction projects.

.44 Magnum
Weighs 15.6 g, impacts at 440 m/s, impact energy of the flat nosed bullet: 1510 J

.357 Magnum
Weighs 10.2 g, impacts at 430 m/s, impact energy of the coned bullet: 943 J

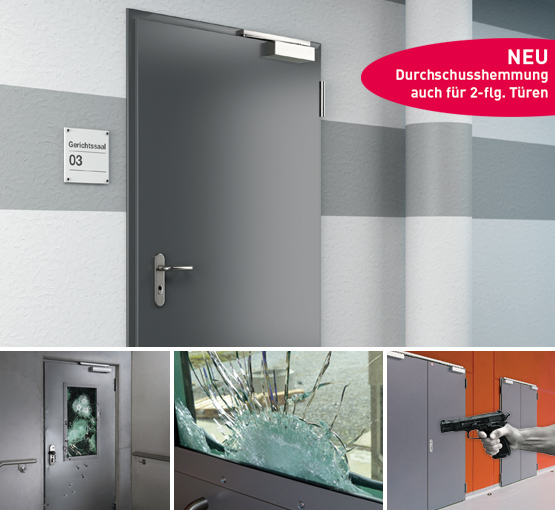

Bullet holes caused by several .44 Magnum projectiles shot at the leaf of a NovoPorta Premio

Associated deformation of steel plating. Projectiles are effectively halted.
